P25 Operation | All-Band | Excellent Audio | 3 Rugged Models

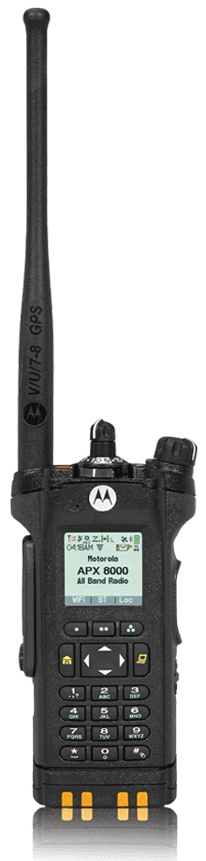

motorola apx 8000

Unlimited Mobility. Uncompromising Performance.

With 4 RF bands and multi-mode system access, the APX 8000 knows no limits when it comes to interoperability. Whether it’s loud or windy, whether you whisper or yell, the Adaptive Audio Engine and ultra-loud speaker bring clarity into every conversation. With Wi-Fi access, the APX 8000 can quickly receive new codeplugs, firmware and software features in order to redeploy the radio fleet with ease as users keep talking without interruption. Intuitively designed with a familiar look and feel, the compact APX 8000 is always comfortable to use, from your grip to your holster.

All Bands, No Boundaries

With four RF bands and multi-mode system access, the APX 8000 knows no limits when it comes to interoperability. Communicate across borders using a single device. Use analog MDC 1200 or digital P25 mode, conventional or trunked operation, SmartNet or SmartZone legacy systems, clear or secure - all across 7/800MHz, VHF and UHF Range 1 & 2 bands.

Hear And Be Heard More Clearly

Whether it’s loud or windy, whether you whisper or yell, the APX 8000 adaptive audio engine and ultra-loud speaker brings clarity into every conversation. The radio dynamically changes the level of noise suppression, microphone gain, windporting and speaker equalization on the fly to consistently produce the loudest, clearest audio in any environment.

Voice And Data, All At Once

With Wi-Fi access, the APX 8000 can quickly receive new codeplugs, firmware and software features in order to redeploy the radio fleet with ease as users keep talking without interruption. Mission Critical Wireless Bluetooth® connects quickly and securely with remote speaker microphones, surveillance kits and the LEX L10 Mission Critical LTE Handheld for radio remote control.

Motorola APX 8000 Features and Benefits

All-Band Operation

4 Bands In 1 Radio
7/800 MHz, VHF and UHF Range 1 and Range 2 bands

Modes And Protocols Include:
Analog MDC-1200 and QCII, Digital P25, Conventional or Trunked, Smartnet / SmartZone, clear or secure, repeater or direct

Adaptive Audio Engine

Adaptive Dual-sided Operation
using beam-forming technology so you can talk into either side of the radio.

Adaptive Noise Suppression
adjusts the audio algorithm so you can cancel out the noise as it changes in the environment.

Adaptive Speaker Equalization
adjusts the 1-watt loud speaker settings based on volume selection so the sound is optimized for talker authenticity at lower volumes and speech intelligibility at higher volumes.

Adaptive Gain Control
adjusts microphone gain based on how loud you talk into the radio to ensure a consistent audio level on the receiving end.

Adaptive Windporting
engages a third microphone in order to cancel out wind noise.

Fit For The Mission

Familiar Look And Feel
of the compact APX 6000 but with the RF band access of two APX 7000 radios.

Flexible All-band Antenna
that bends easily while you'€™re moving around on the job.

Aggressive T-shape
so the radio is easier to grip even with wet or slippery hands.

Top Display
provides quick access to radio status information and critical notifications.

Intelligent Lighting
uses 3 simple colors to alert users of critical radio events like emergency, low battery, out of range and private calls and pages.

Voice Announcement
provides audible confirmation of zone/channel selections and various feature like scan, direct mode, emergency, encryption and controls lock.

Radio Profiles
allows the agency to create custom user experience based on the role and mission of the user.

Integrated Wi-Fi And Data Connectivity

Update Your Radio Fleet Software
more efficiently without interrupting voice communications or waiting for idle radios.

Up To 20 Wi-Fi Networks
can be provisioned in the radio so that users can seamlessly receive radio software updates at facility Wi-Fi access points or in the field via Wi-Fi hot spots.

GPS Outdoor Personnel Tracking
shares your personnel'€™s location, resulting in more efficient task assignment and enhanced officer safety.

Mission Critical Wireless Bluetooth
connects quickly and securely with remote speaker microphones, surveillance kits and the LEX L10 Mission Critical LTE Handheld for radio remote control. Off-the-shelf BT audio and data accessories are also supported.

Ruggedness

Aluminum Alloy Endoskeleton
protects the radio's interior from water intrusion even if the outer housing is breached.

IP 67 rating
ensures the radio can withstand 1 meter water submersion for 30 minutes.

Delta-T Option
ensures the radio can withstand 2 meter water submersion for 2 hours.

MIL-STD 810 C, D, E, F, G
rating ensures you can rely on your radio in the most extreme environments.

Tempered Glass
protects the radio'€™s color display user interface from scratches, impact and pressure.

Dual Latch Battery
protects the radio from resetting, powering off or ejecting the battery upon impact from drops.

Security

Multiple Encryption Algorithms
AES, DES, ADP with up to 128 keys so sensitive information stays protected from scanners and eavesdroppers.

Over-the-air Re-key (OTAR)
to efficiently update encryption keys of fielded radios over time

P25 Radio Authentication
ensures only valid users can access the system.

Two-factor Authentication
allows users to securely query databases.

Operation Modes

  • 9600 Baud Digital APCO P25 Phase 1 FDMA and Phase 2 TDMA Trunking
  • 3600 Baud SmartNet®, SmartZone®, SmartZone, Omnilink Trunking
  • Digital APCO 25, Conventional, Analog MDC 1200, Quick Call II System Configurations
  • Narrow and wide bandwidth digital receiver
  • (6.25 kHz equivalent/25/20/12.5 KHz)

Motorola APX 8000 Models

Model 1.5
Full Bitmap Monochromatic LCD Top Display, 1 Line Text X 8 Characters, 1 Line of Icons, No Menu Support, Multi-Color Backlight.

H91TGD9PW5AN
700/800 MHz (763-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 1,200 Channels

Model 2.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, Home and Data Buttons.

H91TGD9PW6AN
700/800 MHz (764-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels

Model 3.5
Top Display Plus: Full Bitmap Color LCD Display, 4 Lines of Text X 14 Characters, 2 Lines of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad: 3 Soft Keys, 4 Direction Navigation Key, 4x3 Keypad, Home and Data Buttons.

H91TGD9PW7AN
700/800 MHz (763-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels

Motorola APX 8000 Accessories

Motorola Original Parts

Safety Doesn't Stop With The Radio
Extend the power and reliability of your radio with the only complete line of accessories designed, tested and certified for optimal performance with APX portables. Whether it's our industry-leading Remote Speaker Microphone with noise-canceling technology for loud, clear communications or a Mission Critical Wireless Bluetooth earpiece for secure, discreet conversations, our accessories are so comprehensive and flexible, you can trust them to work overtime with your APX radio.

IMPRES™ Smart Audio Accessories
Be clearly heard the first time and eliminate repeating yourself. Whether you need to talk loudly or quietly, into or away from the accessory, IMPRES Audio lowers the loud talker level and raises the soft talker level automatically so listeners do not have to adjust the volume depending on who is talking.

IMPRES Smart Energy System Get the most out of every battery by eliminating the surprise of "low battery alerts." IMPRES chargers tell you exactly how much capacity is in an IMPRES battery before you attach it to your radio and exactly when an IMPRES battery has reached the end of service life.

Mission Critical Wireless Bluetooth® Accessories
The APX Mission Critical Wireless portfolio is skillfully engineered to give first responders enhanced security, quick pairing and fast PTT. Our earpieces provide exceptional audio clarity and volume so messages come through loud and clear in noisy settings. The discreet earbud, which looks like a consumer device, offers private listening in noisier environments. Durable yet lightweight, these wireless accessories fit snugly and comfortably for long shifts.

View the Motorola Original Accessories for the Motorola APX 8000
